Browser Performance

Wix Workshop

File with own code from workshop is in folder repo_from_presenter/

Workshop by Noam @WIX

Rendering Performance

See this google article about browser rendering.

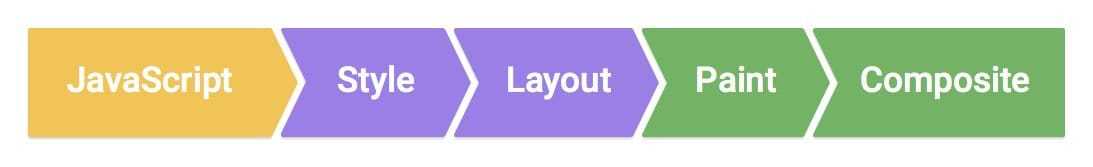

CSS rendering Pipeline

The following happens in succession

0. Request animation frame

1. Calculate Style - recalculate style

   • DOM
   • CSS
   • State: e.g. media queries, hover state

   getComputedStyle

2. Layout

   • Content (dynamically changing)
   • Rules (CSS rules, glue dynamic content and viewport together) e.g. changing margin
   • Viewport (vw)

   make every element into renderable absolute components (define the geometry of the page)

3. Composite (happens in GPU)

   • Cut out part of painting into moving blocks (paper cutouts)
   • Actively plan and allocate block of memory —> to avoid OUT OF MEMORY issues - much harder to deal with later. Don’t just leave everything to the garbage collector.
   • CSS 3D Transform as a trick to use composition

4. Paint (CPU/GPU)

   Graphic elements to pixels on screen.

   Rasterization: Take SVGs, Text, Images —> Transform it into pixels for LCD drivers.

5. Some more to read in this article.
6. An article which explains composition (GPUs job)

How does style rendering work in React Native?

React Native Animations

When trying to set useNativeDriver: true for an Animated value which is used to change a CSS layout property, React Native gives the following error:

Style property ‘width’ is not supported by native animated module

• Why is that?

  TODO: Investigate better!

  The RN style engine probably works similar to how CSS is processed in a browser.

  Changes in the width property trigger layout operations which are expensive, wheres a transform does not. transform is an example of a composite property which is computed in the GPU - at least that’s how it works in the browser - I have to read more about how it’s computed in native iOS and Android.

  Well, given this, I guess React Native only allows composite CSS properties to be sent to the native (iOS and Android) drivers to be performed by the GPU. I have to read up on this.

  See for more information on how browsers render CSS.

Possible improvement

• Set width: 1 and use a transform (with translateX) to achieve the same result.

GPU (Graphic accelerator)

• OpenGL (WebGL) (Use GPU to your liking, but uses JS main thread). Use it for sofisticated animations
• Allows for concurrency

Style, Layout rendering of DOM is all in main thread.

• Layout changes are costly.

Alternatives to main thread:

• Compositing
• Worker thread
• Animations run on different thread
• Scrolling on different process on Safari mobile

IPC between web & UI/Compositor

Macbook pro is your enemy (because it’s faster than the average PC)

How to test Browser Speed?

• Testing speed: High-speed camera are only reliable thing because speed testers slow down speed themselves (used by Nokia).
• Debugging speed: Use Chrome Dev Tools Timeline

Tricks

Some tips written here.

0. Prominent Color

   Show color as placeholder, i.e.

   <div
   	style={{
   		backgroundColor: '#12e1f4',
   		transform: ...send to correct location
   	}}
   >
   </div>

1. Layered Viewport Management

   Have several layers stacked on top of each other, they each get out of opacity whenever their content is loaded (analyze onLoad callback on <img />). Use opacity and not width to show element, because that does not change display of DOM element.

2. Direct Compositing

   • Compositing with atomic elements, like colored rectangles (divs) with will-change (image.style['will-change']:)
   • Using will-change on atomic components does not cost extra memory and can be used a lot here.

3. Background image caching

   • Store data in IndexedDB

4. Set the size of the page by translating the last image to bottom.

   —> So that scroll bar shows real length

Tips

• Position relative/absolute: No side effect -> doesn’t effect other DOM nodes.
• Subpixel text/layout (e.g. text-font: 10.3)
• When to use layout: If inner content of element changes. Then a transform (i.e. translation) won’t help.

Rule of thumb:

• Change in unpredictable content/media (phone/browser-size): Use layouts (e.g. floats, flexbox etc.)
• Unpredictable motions/Change in UI: Use JS or transforms
• Wow effects: Canvas or WebGL
• Predictable animations (e.g. slide in menu bar): CSS animations

CSS Animations only do composition, don’t live in the main thread.

Q&A

• So absolute positioning is best performance?

  only transforms after initial render

• How to allocate and plan memory for graphics?

  compositing, in Safari see number of layers.

• Don’t read content after layout change? Example?

  some reading operations in JS e.g. reading Element.clientTop() and then setting top and doing this often is bad for performance. - Don’t do it!
